Blending data in PowerBI like in Tableau

by

Today I came across a question in the PowerBI-forum if blending data was possible in Power BI like in Tableau. Although I wouldn’t necessarily recommend it, it’s definitely is a nice challenge. So the following function will interlace the rows from 2 tables like the blending-function in Tableau does. Just that we cannot use any aggregators … Read more

Dynamically flatten Parent-Child Hierarchies in DAX and PowerBI

by

If you use DAX to flatten Parent-Child hierarchies you will end up with a table that has a static number of columns (like described here). If you need a dynamic solution instead, which creates just as many level-columns as there are needed for the current data, you can use DAX’s helper-tool Power Query (or Get Data in Excel) or the query-editor in PowerBI, which uses the language M.

Another advantage of this solution is that you can script the table creation in one step (only flaw: You still need to manually adjust your hierarchy though): But it saves time in creating the table, especially if you have many levels.

Update 2017-Dec-2: It also handles multiple parents now.

2 simple steps to flatten Parent-Child Hierarchies

  1. copy the following function,
  2. add a new step to your current table where you call this function, filling in the following parameters:
    • table name (which is the name of the previous step in your M-query)
    • name of the column with the child-key
    • name of the column with the parent-key
    • name of the column who’s values shall be shown in the levels (can also be child-key)



flatten Parent-Child Hierarchies
Call fnFlattenPCHierarchyFunction

Endless loops

If the relationships in your data are ambiguous, i.e. items stand in parent-child as well as child-parent-relationship to each other, and endless loop would occur. The newest version (V2 upwards) caters for this possibility and will generate a warning and return only the rows that are subject to the endless loop to examine.

And this is the code:

Read more

Automatical or Bulk- Rename Columns in Power BI and Power Query

by

Edit 7th Feb 2017: Friendly reader Roknic pointed out in the comments below that there’s actually an existing function for it in M: Table.TransformColumnNames 🙂

So the first of my example below would actually look like this:

Table.TransformColumnNames(Source, each Text.Replace(_, " ", "_"))

But still keeping my original post here, as the transformations in them might help for other use cases:

If you want to rename all of your table’s columns with a common rule, like “replace all spaces by underscore” or just “delete all spaces”, check out this easy method:

The above formula will replace all spaces (” “) by underscores (“_”).

How does it work:

The 2nd argument in the Table.RenameColumns-formula is a list of lists, just like in Table.TransformColumnType from this article. So we apply the same technique here: List.Transform transforms a single element from a list into a list-item, whose 2nd argument will be calculated with a Text.Replace-function.

Variations:

Rename Columns Variations

Only replace FirstN or LastN elements from the column names:

Read more

Conditions in FirstN, LastN and other xN-functions in M, PowerBI and Power Query

by

Today I discovered that we can use conditions in many of the N-selecting functions where one/I would normally expect just a number-expression for the N: Table.RemoveFirstN( table as table, optional countOrCondition as any) So apart from being able to select a certain number of rows to be removed, we can pass a condition (as function). This condition will … Read more

Comfort Functions for Easy Profit & Loss statements in Power BI and Excel – Part2

by

Here comes some long awaited comfort functions for part 2 of my easy P&L series. In the first section I’ve presented the general principle on how to work with a structure using an accounts-group-table. Today I will present 2 alternatives to define the reports without specifying single accounts. So if a new accounts are added to the chart of accounts, you don’t have to adjust your report definitions: Just make sure that to fill in all the fields in your account-group-table and you’re ready to go 🙂

No need to specify single accounts

So you only need to adjust your report definitions if you add new group items. If that’s still too much, take the 2nd solution, which will even eliminate that requirement:

  1. Individual Account Layout: Just define each subtotal and determine for which subtotals single accounts shall be shown

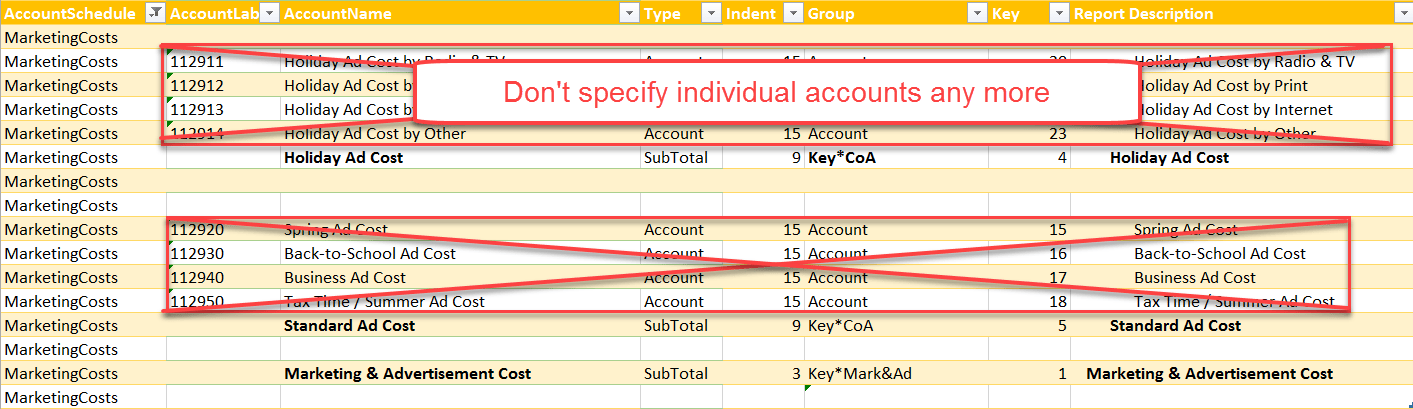

No more specification of individual accounts

How to use it:

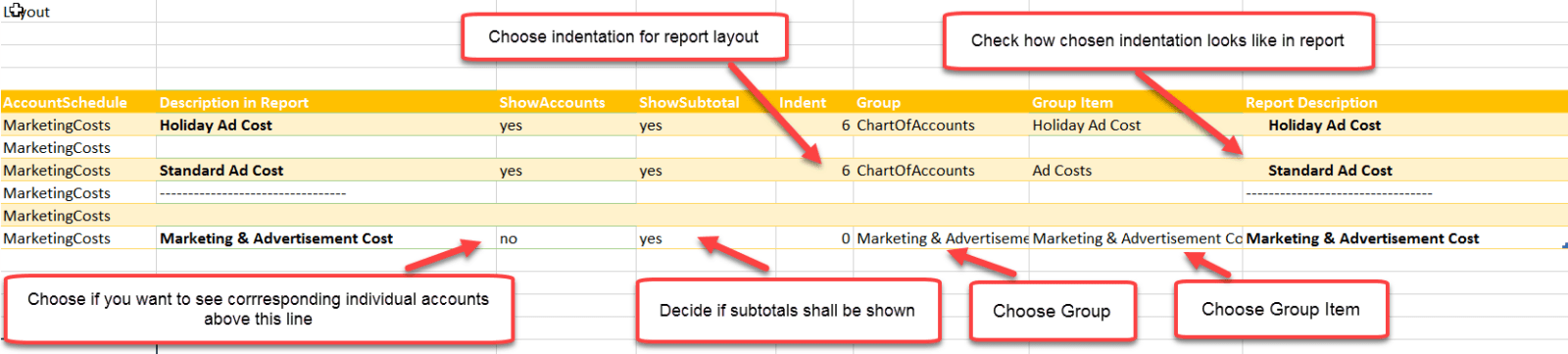

How to use Individual Report Layout

2. Ultrashort Account Layout: Further simplification of just defining the groups (hierarchy) that shall be shown (with option to filter on one of them)

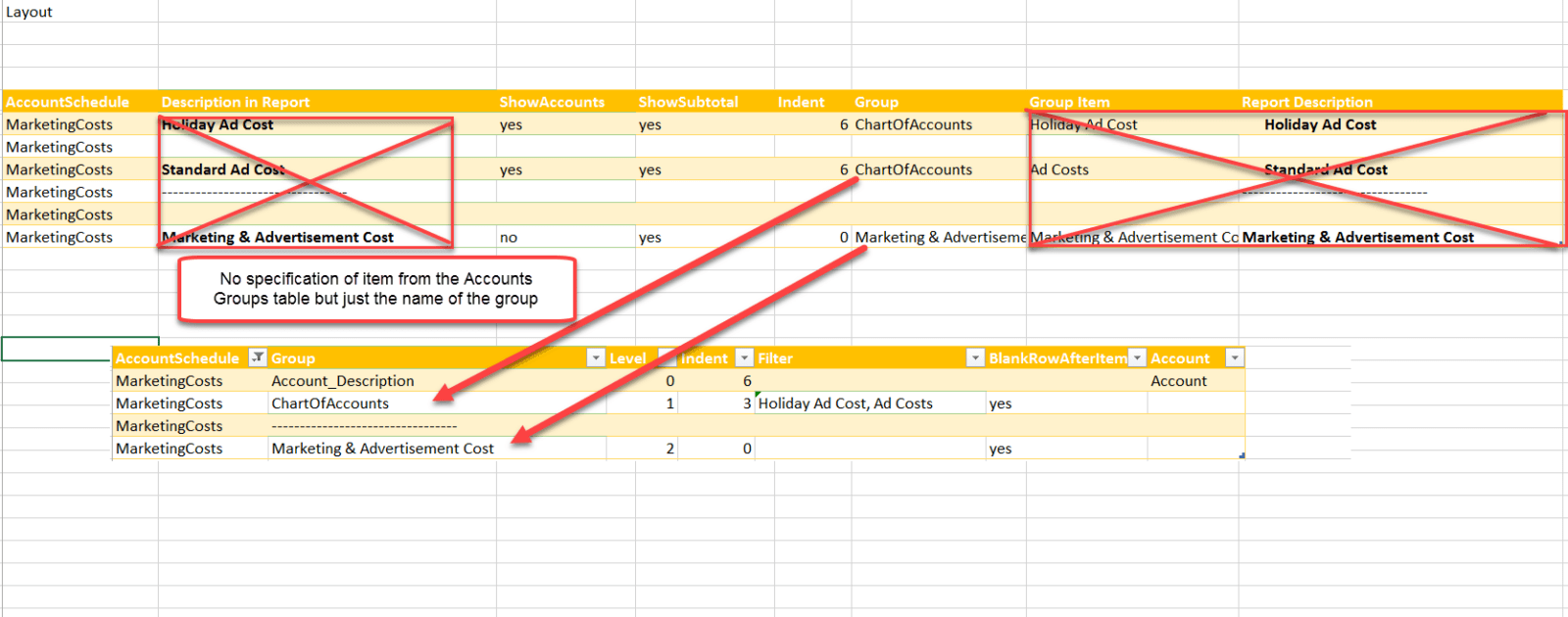

No need to define individual group items

How to use it:

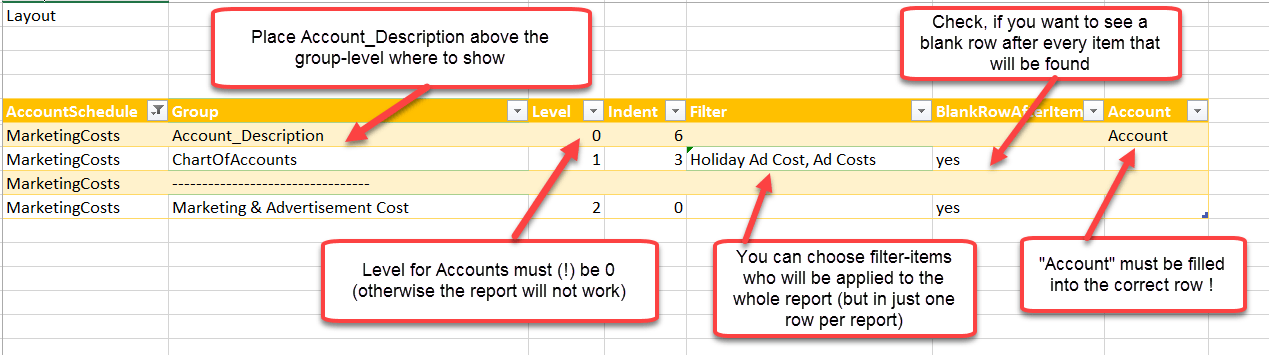

How to use Ultrashort Layout

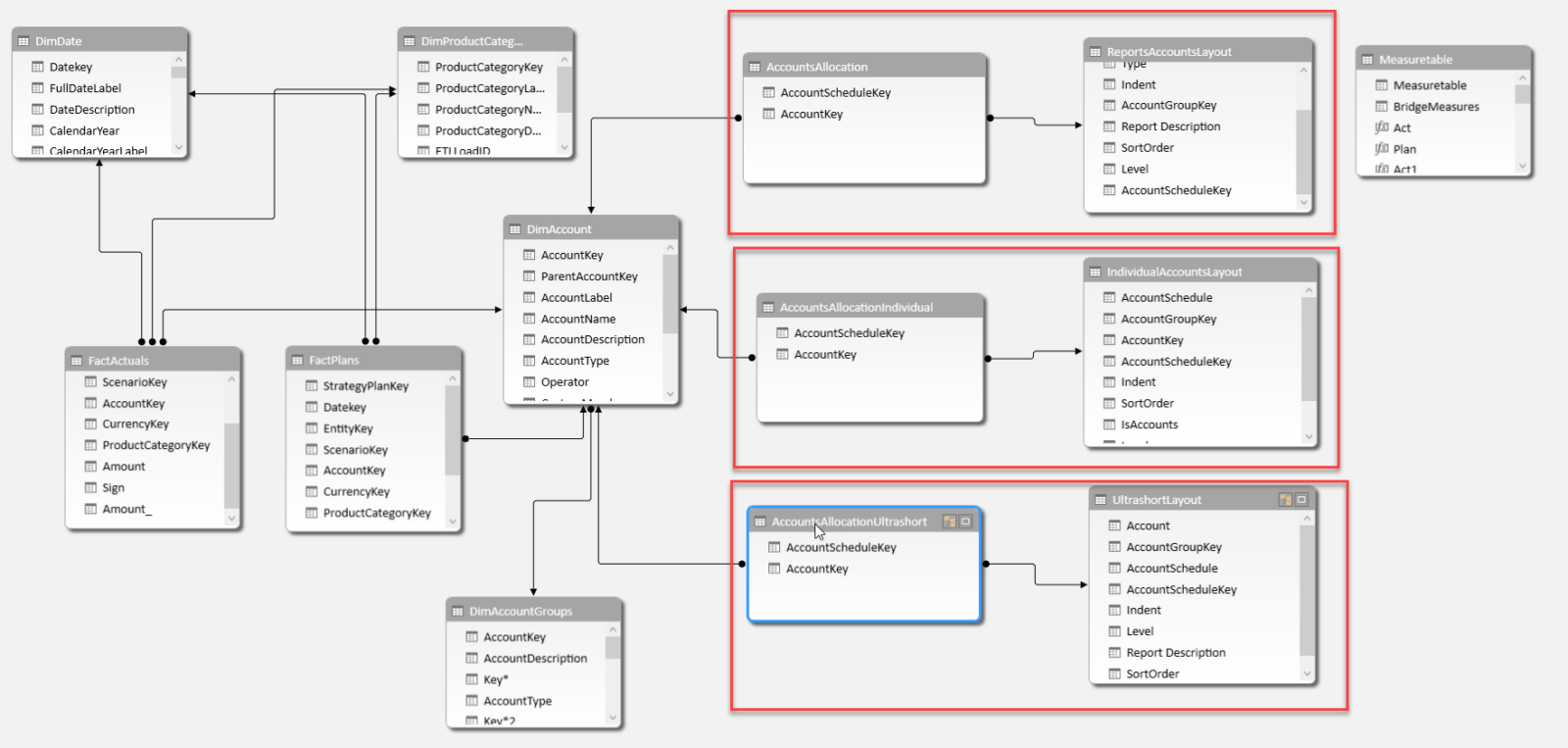

So these 2 different layouts will both produce the same reports incl. all accounts – just like in the first example. So you can choose which layout-style suits you best – actually, you can use all 3 in parallel. You just have to make sure to grab your pivot-rows from the correct tables and in Excel to grab the matching measures, as they all have their own bridge-tables (which need to be used in the measures):



How it works

Read more

Easy Profit & Loss (and other account) statements in PowerBI and Excel – Part2

by

Welcome to part 2 of my series of easy Profit & Loss and other account statements in Power BI and Excel. In the first part I introduced the general principle of creating asymmetric shaped reports who use just one measure per column (you should have read this article in order to understand this post here).

How the technique works

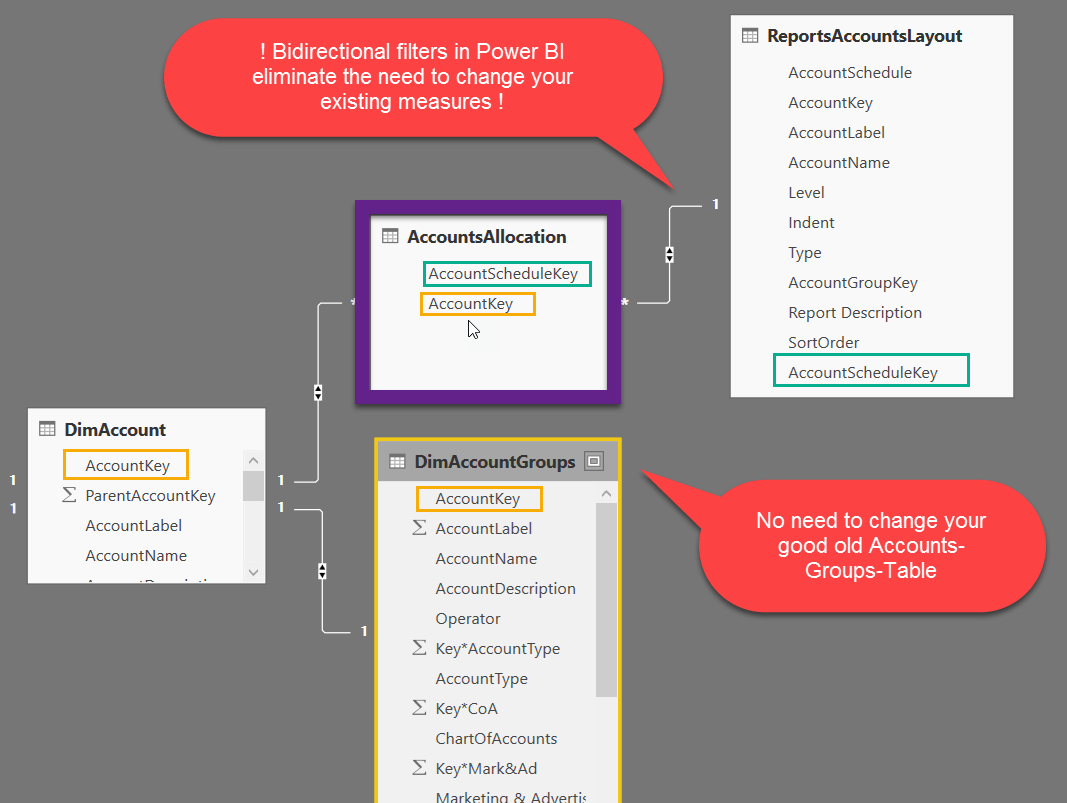

This technique capitalises the aggregation power of the Vertipaq engine and creates a bridge-table between your DimAccount-table and the ReportsAccountsLayout-table. In there for every line of your report, all accounts that belong to the (sub-)totals are matched (“AccountsAllocation”). This table can get very long, but the engine can handle this easily:

Different use case: Account-groups-tables

In the first example we’ve worked with a chart of accounts, which had a parent-chield-hierarchy defining all the subtotals of the report. In this example we’re working with a different setup, using the good old DimAccountsGroups-table. Just one row per account and the columns are coming in pairs, containing the group-criteria and the sort-order for the report:

Individual Report-Layout

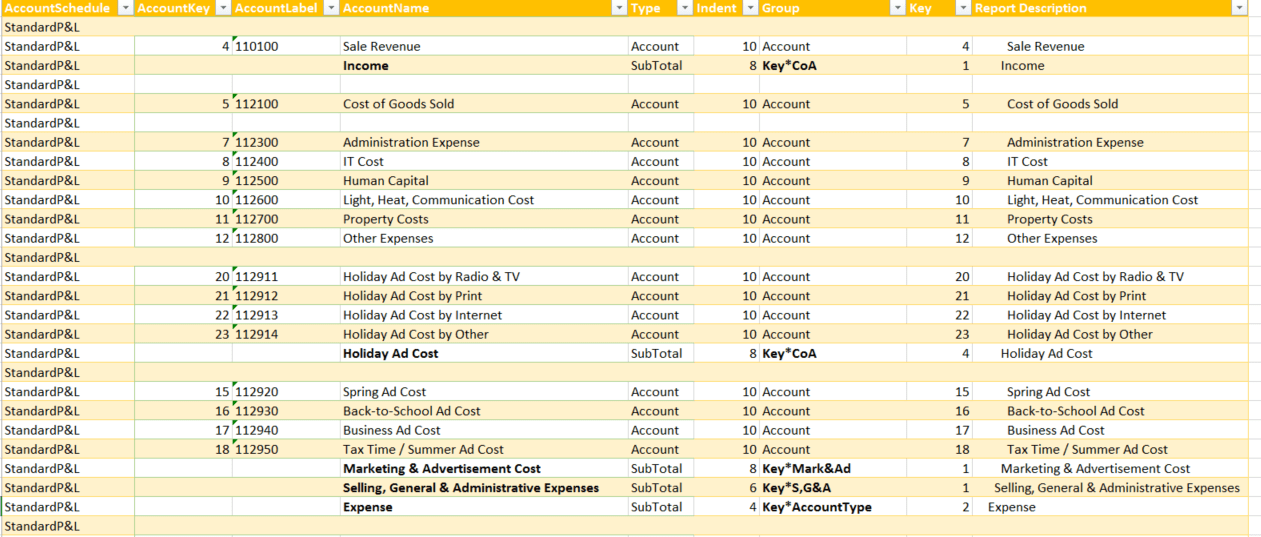

We also need a second table (ReportsAccountsLayout) that holds the definitions of the report-layouts like this:

Read more
