How to create a Load History or Load Log in Power Query or Power BI

If you want to collect your regularly loaded data without overwriting it or create a load log that writes the load activites with a timestamp into a table, you need to create a query that adds new lines to it’s own latest version.

In both cases you add a column that returns the current day and time using DateTime.LocalNow()


Load Log the PowerBI-way

Then using Power BI it’s fairly easy: Use the R-extension to perform an append query to the external txt or csv-file like described in this post (incremental load):

require(gdata)
write.table(trim(dataset), file=”your filepath & filename.txt”, sep = “\t”, row.names = FALSE, append = TRUE; column.names=FALSE)
plot(dataset);

Load Log the Power Query-way

In Excel’s Power Query it’s a bit trickier, because you cannot export your queries and therefore need to create the consolidated table in your workbook itself. And it must be a self-referencing query or to be more precise: a self-sourcing query: A query that takes its latest output as its new input, then appends the new data and overwrites the old result with the new one.

How do we deal with this? When we write the query we don’t have the result yet to be referenced?

To solve this henn-&egg challenge we just take a dummy query as the first input (here: duplicate our ImportData (1)) and rename it “Result” (2). Then add the new figures (Append (3) – ImportData (4)) and delete the “Added Custom”-step (5) before loading it to a table.

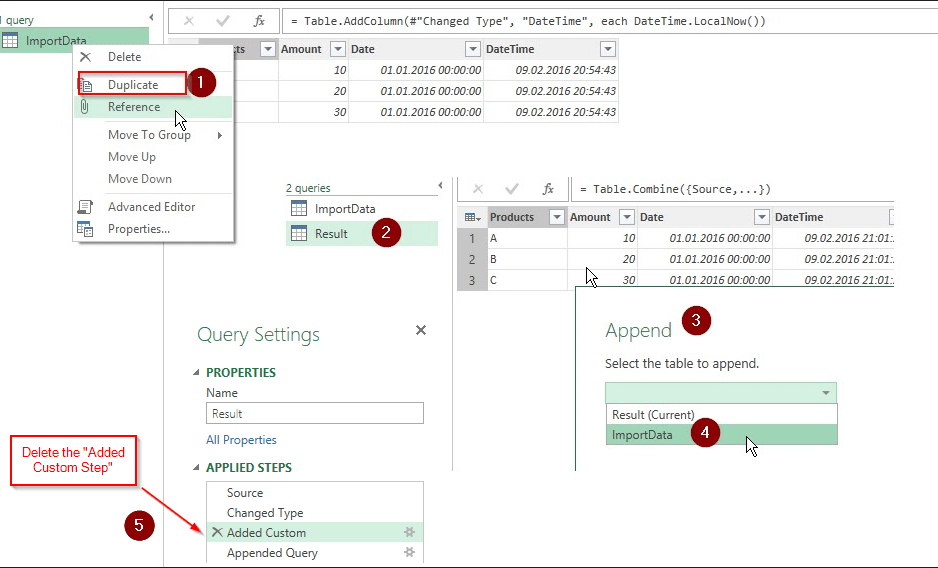

Image2New

With this we’ve created the table that we’re going to reference from now on. To do so we edit this query and replace the reference to the “ImportData” by the reference to our new “Result:


If you load this query now, there will be the data from your original source 3 times. My suggestion is that you delete all rows except the headers and start your import procedure fresh from here instead of manually selecting the rows that you want to keep.

Error-proofing collecting queries

If you’re not aiming for the log but for a daily collection routine, you might want to provide for unintended double-refreshes. Yes, you could delete the additional data but this is error-prone. So you reformat your “DateTime”-column from the beginning as “date” only. Then check all your columns and “Remove Duplicates”. This will only keep one load per day (provided the loads where the same).

This technique will not throw a circular-dependency-error, because it references the table in the sheet and not the query itself.

ME_PQCreateLoadHistoryV2.xlsx



Enjoy & stay queryious 🙂

Edit 25-June-2016: Just came across Hilma Buchta’s blogpost from last year that describes exactly the same technique!

Edit 19-Nov-2016: For PowerBI, you can find an improved version without the need to use R here.

Please vote for the Power BI feature request for incremental load here!

Edit 03-Jan-2017: If you struggle with applying the self-referencing-table-technique to your model, here is a much better explanation: http://exceleratorbi.com.au/cleansing-data-power-query/

Comments (13) Write a comment

  1. Just the answer i was looking for. I can’t believe such a necessary pattern as appending data ONLY without ‘refreshing’ the existing data in the table is not a standard option in the append menu.

    I needed the above for a solution to compare stock levels over time at each month end. Each month extracting with a query refresh SKU stock levels with a date stamp and power querying them into power pivot datamodel. Once in the backend they needed to stay there (and NOT be deleted by the query resfresh). And then next month append the new SKU stock levels. With some simple time intelligence this helped stock level movement reporting.
    Or is there an easier pattern to use in Powerpivot / Power BI ?

    So simple a solution. Thanks.

    Reply

    • Yes … Must check if there is a feature request for it that we can vote for 🙂

      Depending on your web-source sometimes you can prevent old values from disappearing by parametrizing your query-link like this:

      let
      Para = Date.From(DateTime.LocalNow()),
      Month = Text.PadStart(Number.ToText(Date.Month(Para)-1),2,”0″),
      Day = Text.PadStart(Number.ToText(Date.Day(Para)),2,”0″),
      = Csv.Document(Web.Contents(“http://real-chart.finance.yahoo.com/table.csv?s=RDSB.L&a=03&b=12&c=1996&d=“&Month&”&e=“&Day&”&f=2016&g=w&ignore=.csv”), Delimiter=”,”,Encoding=1252])

      This keeps the starting-value fix and automatically adjusts the end- values to the current day.
      But if the old values disappear from the source or you simply want to be on the safe side, then I see no alternative at the moment.

      Reply

  2. Hi Imke! Great idea! How did I missed this post? It caused me to invent a bicycle for refresh logging…

    1st query:
    let
    Init = #table({“LastRefresh”},{{DateTime.FixedLocalNow()}})
    in
    Init

    2nd query (from the table renamed to “tRefresh”):

    let
    Source = Excel.CurrentWorkbook(){[Name=”tRefresh”]}[Content],
    AddRefresh = List.Combine({Source[LastRefresh],{DateTime.FixedLocalNow()}}),
    ToTable = Table.FromList(AddRefresh, Splitter.SplitByNothing(), {“LastRefresh”}, null, ExtraValues.Error)
    in
    ToTable

    Reply

    • Yes, this is very much alike 🙂
      The way I’ve implemented it, it now creates an additional timestamp-entry in a table every time I hit the refresh-button – like magic 🙂 So this could nicely be used for protocols or other.

      Reply

  3. Pingback: Power query source from folder - append data?

  4. Great post – Would it be possible to post the detailed instructions for installing gdate for Power BI desktop? I’m a financial analyst, so I can’t follow all the various technical instructions.

    Reply

    • Hi Oliver,
      I’m using RStudio for my R. There you go to Tools -> Install Packages -> In the Window “Packages” you start to type “gd” and then a popup-window will open that shows the available downloads, of which one is gdata -> OK and install.
      In this video you can see the whole installation-process of R incl. the load of a package: https://www.youtube.com/watch?v=S6iYIjuLSa0

      Reply

      • Thanks – that resolved the issue!

        Is it possible to write the output file to OneDrive for business or SharePoint 365?

        Reply

  5. Pingback: Self Referencing Tables in Power Query - Excelerator BI

  6. getting this: error

    Feedback Type:
    Frown (Error)

    Timestamp:
    2017-06-27T20:02:53.3731924Z

    Local Time:
    2017-06-27T16:02:53.3731924-04:00

    Product Version:
    2.46.4732.581 (PBIDesktop) (x64)

    Release:
    May 2017

    IE Version:
    11.1358.14393.0

    OS Version:
    Microsoft Windows NT 10.0.14393.0 (x64 en-US)

    CLR Version:
    4.6.2. or later [Release Number = 394802]

    Workbook Package Info:
    1* – en-US, Query Groups: 0, fastCombine: Disabled, runBackgroundAnalysis: True.

    Peak Working Set:
    498 MB

    Private Memory:
    429 MB

    Peak Virtual Memory:
    34.2 GB

    Error Message:
    R script error.
    Loading required package: gdata
    gdata: Unable to locate valid perl interpreter
    gdata:
    gdata: read.xls() will be unable to read Excel XLS and XLSX files
    gdata: unless the ‘perl=’ argument is used to specify the location of a
    gdata: valid perl intrpreter.
    gdata:
    gdata: (To avoid display of this message in the future, please ensure
    gdata: perl is installed and available on the executable search path.)
    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLX’ (Excel 97-2004) files.

    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLSX’ (Excel 2007+) files.

    gdata: Run the function ‘installXLSXsupport()’
    gdata: to automatically download and install the perl
    gdata: libaries needed to support Excel XLS and XLSX formats.

    Attaching package: ‘gdata’

    The following object is masked from ‘package:stats’:

    nobs

    The following object is masked from ‘package:utils’:

    object.size

    The following object is masked from ‘package:base’:

    startsWith

    Error: unexpected input in “write.table(trim(dataset), file=””
    Execution halted

    User ID:
    820dea21-fab4-4831-a846-cf7d8390c450

    Session ID:
    5308cac0-adbd-4d00-a4e7-95b4d45b66e1

    Telemetry Enabled:
    True

    Model Default Mode:
    Import

    Enabled Preview Features:
    PBI_PbiServiceLiveConnect
    PBI_daxTemplatesEnabled
    PBI_relativeDateSlicer

    Disabled Preview Features:
    PBI_Impala
    PBI_Snowflake
    PBI_shapeMapVisualEnabled
    PBI_EnableReportTheme
    PBI_allowBiDiCrossFilterInDirectQuery
    PBI_esriEnabled
    PBI_pivotTableVisualEnabled
    PBI_numericSlicerEnabled
    PBI_SpanishLinguisticsEnabled

    Disabled DirectQuery Options:
    PBI_DirectQuery_Unrestricted

    Cloud:
    GlobalCloud

    Activity ID:
    5308cac0-adbd-4d00-a4e7-95b4d45b66e1

    Time:
    Tue Jun 27 2017 16:02:43 GMT-0400 (Eastern Daylight Time)

    Version:
    2.46.4732.581 (PBIDesktop)

    Client Error Code:
    ServiceErrorToClientError

    Error Details:
    R script error.
    Loading required package: gdata
    gdata: Unable to locate valid perl interpreter
    gdata:
    gdata: read.xls() will be unable to read Excel XLS and XLSX files
    gdata: unless the ‘perl=’ argument is used to specify the location of a
    gdata: valid perl intrpreter.
    gdata:
    gdata: (To avoid display of this message in the future, please ensure
    gdata: perl is installed and available on the executable search path.)
    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLX’ (Excel 97-2004) files.

    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLSX’ (Excel 2007+) files.

    gdata: Run the function ‘installXLSXsupport()’
    gdata: to automatically download and install the perl
    gdata: libaries needed to support Excel XLS and XLSX formats.

    Attaching package: ‘gdata’

    The following object is masked from ‘package:stats’:

    nobs

    The following object is masked from ‘package:utils’:

    object.size

    The following object is masked from ‘package:base’:

    startsWith

    Error: unexpected input in “write.table(trim(dataset), file=””
    Execution halted

    Stack Trace:
    Microsoft.PowerBI.ExploreServiceCommon.ScriptHandlerException: R script error.
    Loading required package: gdata
    gdata: Unable to locate valid perl interpreter
    gdata:
    gdata: read.xls() will be unable to read Excel XLS and XLSX files
    gdata: unless the ‘perl=’ argument is used to specify the location of a
    gdata: valid perl intrpreter.
    gdata:
    gdata: (To avoid display of this message in the future, please ensure
    gdata: perl is installed and available on the executable search path.)
    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLX’ (Excel 97-2004) files.

    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLSX’ (Excel 2007+) files.

    gdata: Run the function ‘installXLSXsupport()’
    gdata: to automatically download and install the perl
    gdata: libaries needed to support Excel XLS and XLSX formats.

    Attaching package: ‘gdata’

    The following object is masked from ‘package:stats’:

    nobs

    The following object is masked from ‘package:utils’:

    object.size

    The following object is masked from ‘package:base’:

    startsWith

    Error: unexpected input in “write.table(trim(dataset), file=””
    Execution halted
    —> Microsoft.PowerBI.Radio.RScriptRuntimeException: R script error.
    Loading required package: gdata
    gdata: Unable to locate valid perl interpreter
    gdata:
    gdata: read.xls() will be unable to read Excel XLS and XLSX files
    gdata: unless the ‘perl=’ argument is used to specify the location of a
    gdata: valid perl intrpreter.
    gdata:
    gdata: (To avoid display of this message in the future, please ensure
    gdata: perl is installed and available on the executable search path.)
    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLX’ (Excel 97-2004) files.

    gdata: Unable to load perl libaries needed by read.xls()
    gdata: to support ‘XLSX’ (Excel 2007+) files.

    gdata: Run the function ‘installXLSXsupport()’
    gdata: to automatically download and install the perl
    gdata: libaries needed to support Excel XLS and XLSX formats.

    Attaching package: ‘gdata’

    The following object is masked from ‘package:stats’:

    nobs

    The following object is masked from ‘package:utils’:

    object.size

    The following object is masked from ‘package:base’:

    startsWith

    Error: unexpected input in “write.table(trim(dataset), file=””
    Execution halted

    at Microsoft.PowerBI.Radio.RScriptWrapper.RunScript(String originalScript, Int32 timeoutMs)
    at Microsoft.PowerBI.Client.Windows.R.RScriptHandler.GenerateVisual(ScriptHandlerOptions options)
    — End of inner exception stack trace —
    at Microsoft.PowerBI.Client.Windows.R.RScriptHandler.GenerateVisual(ScriptHandlerOptions options)
    at Microsoft.PowerBI.ExploreServiceCommon.ScriptVisualCommandFlow.RunInternal(Stream dataShapeResultStream, QueryBindingDescriptor& bindingDescriptor)
    at Microsoft.PowerBI.ExploreServiceCommon.ScriptVisualCommandFlow.Run(Stream dataShapeResultStream, QueryBindingDescriptor& bindingDescriptor)
    at Microsoft.PowerBI.ExploreHost.SemanticQuery.ExecuteSemanticQueryFlow.TransformDataShapeResult(QueryCommand transformCommand, String dataShapeId, SemanticQueryDataShapeCommand command, Stream dataShapeResultStream, QueryBindingDescriptor& bindingDescriptor)
    at Microsoft.PowerBI.ExploreHost.SemanticQuery.ExecuteSemanticQueryFlow.ProcessAndWriteDataQuery(IQueryResultDataWriter queryResultDataWriter, DataShapeGenerationContext dsqGenContext, EntityDataModel model, DataQuery query, ServiceErrorStatusCode& serviceErrorStatusCode)
    at Microsoft.PowerBI.ExploreHost.SemanticQuery.ExecuteSemanticQueryFlow.ProcessAndWriteSemanticQueryCommands(IQueryResultsWriter queryResultsWriter, ExecuteSemanticQueryRequest request, IConceptualSchema conceptualSchema, EntityDataModel model)

    DPI Scale:
    100%

    Supported Services:
    Power BI

    Formulas:

    Reply

    • There seems to be a problem with your R-script or R-installation. Did it run successfully in R-Studio?

      Reply
